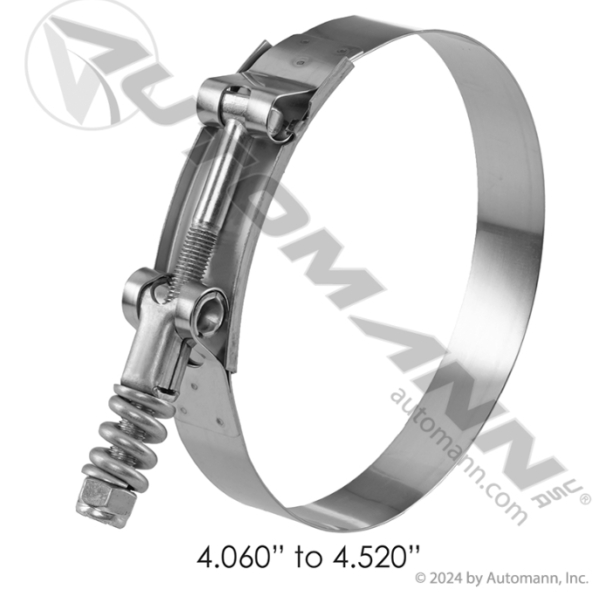

SPRING T-BOLT CLAMP 4.06 TO 4.52IN BREEZE

Description

• Standard Spring Loaded T-Bolt
• 0.75in Wide, 0.025in Thick 300 Series SS Band
• 1/4in-28 Plated Bolt

Product Overview

Breeze’s Spring Loaded T-bolt clamp is a reliable clamping method. The clamp uses a bolt and a spring to tighten the band and maintain constant pressure. This configuration is great for applications where temperature and pressure fluctuate frequently. The spring aides in keeping a seal on the hose and prevents loose connections. This product is a direct OE replacement.

Specific Features & Benefits

• Direct OE replacement
• Meets SAE J1508 Type SLTB standard for hose clamps
• The spring auto adjusts the diameter of the band to keep constant tension on the hose
• Floating bridge ensures the bolt assembly does not damage the hose
• The bolt is zinc plated steel for corrosion resistance and long life
• The band is made of 300 series stainless steel for high strength and corrosion resistance
• Features ¼” T-bolt; torque range of 60 in-lbs. Note: Torque wrench recommended for installation; use of impact tools is NOT advised
